DIN915 Metal Set Screws Stainless Steel , Headless Hex Socket Set Screw

Name: DIN915 Metal Set Screws Stainless Steel Headless Hex Socket Set Screw
Brand: Runtai
Price: 1 USD

China DIN915 Metal Set Screws Stainless Steel , Headless Hex Socket Set Screw wholesale

Brand Name : Runtai

Model Number : Set Screws

Certification : ISO9001/TS16949

Place of Origin : Jiangsu, China (Mainland)

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A

Supply Ability : 5 Ton/ days

Delivery Time : 15-20 working days

Packaging Details : PP bag+Carton box+ Wooden Pallet

Size : M1-M30 for choose

Material : Steel, Stainless Steel, Brass, Aluminum Alloy

Grade : 4.8 8.8 10.9 12.9 for choose

Surface treatment : zinc plated, nickel plated, black phosphates for choose

Standard : DIN ISO JIS ANSI

Products Name : DIN915 Stainless Steel Socket Drive Extended-Tip Set Screws

Contact Now

DIN915 Stainless Steel Socket Drive Extended-Tip Set Screws Hexagon Socket Headless Screws with Dog Point

Products Description

18-8 stainless steel set screws have good chemical resistance. Also known as half dog-point set screws, these set screws have a protruding tip that locks within a mating hole or slot to keep parts aligned. They may be mildly magnetic. Length listed is the overall length.

Products Specification

Material	Alloy Steel
Thread Size	M8
Thread Pitch	1.25 mm
Length	20 mm
Cone Point Angle	90°
Drive Size	4 mm
Hardness	Rockwell C45
Specifications Met	DIN 914, ISO 4027
Thread Type	Metric
Thread Spacing	Coarse
Thread Fit	Class 5g6g
Thread Direction	Right Hand
Drive Style	Hex
Tip Type	Cone
Head Type	Headless
System of Measurement	Metric
RoHS	Compliant

Note: Material, Size and Surface Treatment for choose.

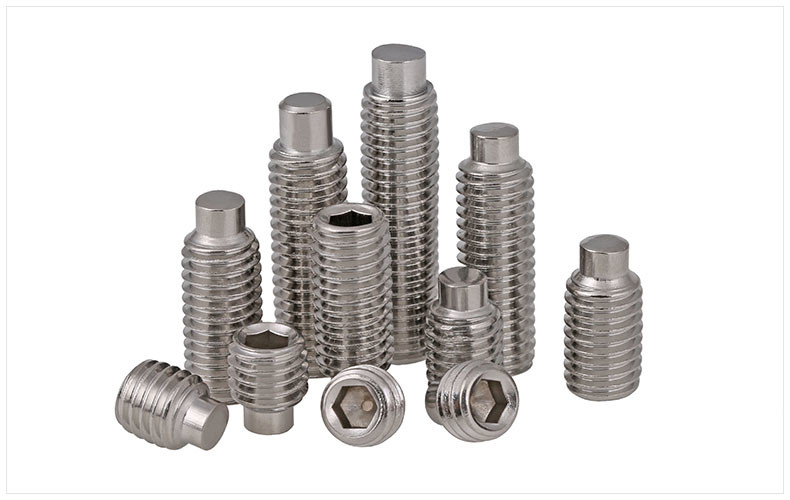

More Products Pictures
