Metric 18-8 Stainless Steel Extra-Wide Truss Head Phillips Screws Cross Recessed Drive Mushroom Head Screws

Name: Metric 188 Stainless Steel ExtraWide Truss Head Phillips Screws Cross Recessed Drive Mushroom Head Screws
Brand: Runtai
Price: 1 USD

China Metric 18-8 Stainless Steel Extra-Wide Truss Head Phillips Screws Cross Recessed Drive Mushroom Head Screws wholesale

Brand Name : Runtai

Model Number : Extra-Wide Truss Head Phillips Screws

Certification : ISO9001/TS16949

Place of Origin : Jiangsu, China (Mainland)

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A

Supply Ability : 5 Ton/ days

Delivery Time : 15-20 working days

Packaging Details : PP bag+Carton box+ Wooden Pallet

Size : M1-M30 for choose

Material : Steel, Stainless Steel, Brass, Aluminum Alloy

Grade : 4.8 8.8 10.9 12.9 for choose

Surface treatment : zinc plated, nickel plated, black phosphates for choose

Standard : DIN ISO JIS ANSI

Products Name : Metric 18-8 Stainless Steel Extra-Wide Truss Head Phillips Screws

Contact Now

Metric 18-8 Stainless Steel Extra-Wide Truss Head Phillips Screws Cross Recessed Drive Mushroom Head Screws

Products Description

Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. All are passivated for added protection against oxidation and corrosion. The extra-wide truss head distributes holding pressure to reduce the likelihood of crushing thin material. Length is measured from under the head.

Products Specification

Thread Size	M4
Thread Pitch	0.7 mm
Length	20 mm
Threading	Fully Threaded
Head Diameter	9.75 mm
Head Height	2.59 mm
Drive Style	Phillips
Drive Size	No. 2
Material	18-8 Stainless Steel
Finish	Passivated
Hardness	Not Rated
Tensile Strength	100,000 psi
Thread Type	Metric
Thread Spacing	Coarse
Thread Fit	Class 6g
Thread Direction	Right Hand
Head Type	Rounded
Rounded Head Style	Truss
Rounded Head Profile	Wide
System of Measurement	Metric
RoHS	Compliant

Note: Material, Size and Surface Treatment for choose.

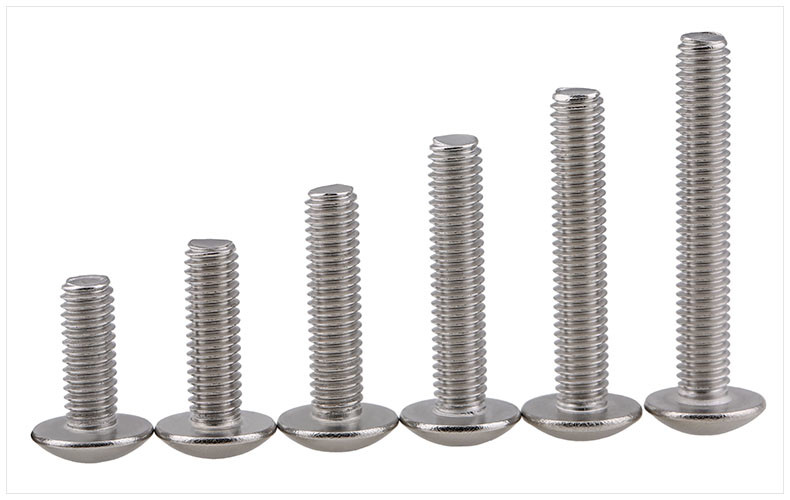

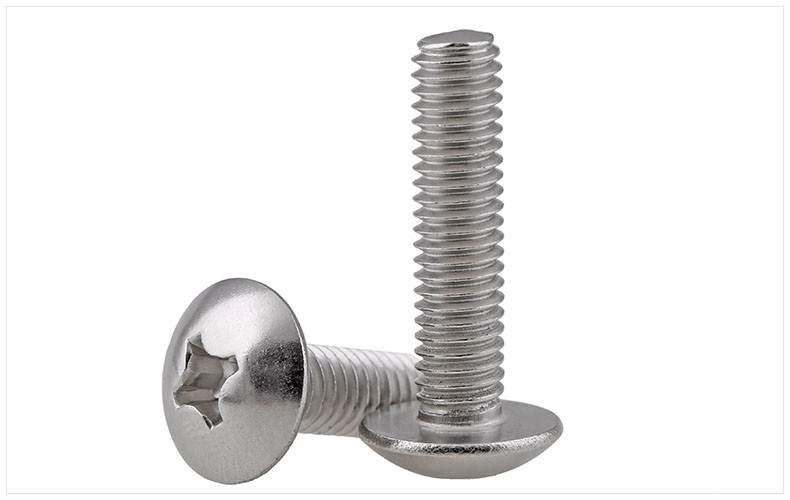

More Products Pictures

Metric 18-8 Stainless Steel Extra-Wide Truss Head Phillips Screws Cross Recessed Drive Mushroom Head Screws

Product Tags:

stainless steel fasteners

stainless steel hardware

Metric 18-8 Stainless Steel Extra-Wide Truss Head Phillips Screws Cross Recessed Drive Mushroom Head Screws Images
